Travaux pratique – VOIP
Configuration d’une architecture VoIP sous Packet Tracer.

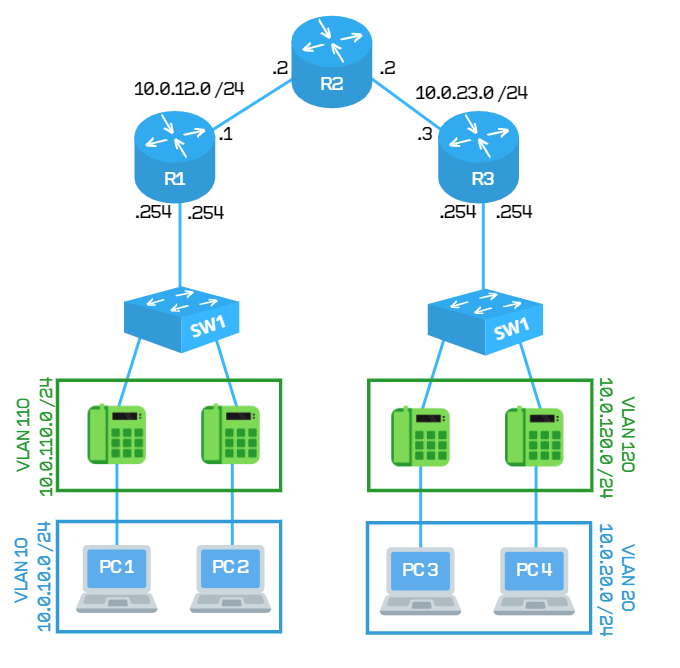

L’architecture

La consigne
Créer cette architecture sous packet tracer. Les équipements réseau à utiliser sont les suivants :
- 3 x Routeur CISCO 2811
- 2 x Switch CISCO 2950
- 4 x IP Phone 7960
La configuration
Configuration de SW_1
### CONFIGURATION DES VLANS ###
SW_1(config)# vlan 10
SW_1(config-vlan)# name DATA
SW_1(config-vlan)# exit
SW_1(config)# vlan 110
SW_1(config-vlan)# name VOICE
SW_1(config-vlan)# exit
### CONFIGURATION DES PORTS CLIENTS ###
SW_1(config)# interface range FastEthernet 0/1-2
SW_1(config-if-range)# switchport mode access
SW_1(config-if-range)# switchport access vlan 10
SW_1(config-if-range)# switchport voice vlan 110
### CONFIGURATION DU PORT TRUNK ###
SW_1(config)# interface FastEthernet 0/24
SW_1(config-if)# description VERS_R1
SW_1(config-if)# switchport mode trunkConfiguration de SW_2
### CONFIGURATION DES VLANS ###
SW_2(config)# vlan 20
SW_2(config-vlan)# name DATA
SW_2(config-vlan)# exit
SW_2(config)# vlan 120
SW_2(config-vlan)# name VOICE
SW_2(config-vlan)# exit
### CONFIGURATION DES PORTS CLIENTS ###
SW_2(config)# interface range FastEthernet 0/1-2
SW_2(config-if-range)# switchport mode access
SW_2(config-if-range)# switchport access vlan 20
SW_2(config-if-range)# switchport voice vlan 120
### CONFIGURATION DU PORT TRUNK ###
SW_2(config)# interface FastEthernet 0/24
SW_2(config-if)# description VERS_R1
SW_2(config-if)# switchport mode trunkConfiguration de R1
### CONFIGURATION DES INTERFACES PHYSIQUE ###
R1(config)# interface FastEthernet 0/1
R1(config-if)# description VERS_WAN
R1(config-if)# ip address 10.0.12.1 255.255.255.0
R1(config-if)# no shutdown
R1(config)# interface FastEthernet 0/0
R1(config-if)# description VERS_LAN
R1(config-if)# no shutdown
### CONFIGURATION DES INTERFACES VIRTUELLE ###
R1(config)# interface FastEthernet 0/0.10
R1(config-subif)# description DATA
R1(config-subif)# ip address 192.168.10.254 255.255.255.0
R1(config-subif)# encapsulation dot1q 10
R1(config)# interface FastEthernet 0/0.110
R1(config-subif)# description VOICE
R1(config-subif)# ip address 192.168.110.254 255.255.255.0
R1(config-subif)# encapsulation dot1q 110
### CONFIGURATION DES SERVEURS DHCP ###
R1(config)# ip dhcp pool DATA
R1(dhcp-config)# network 192.168.10.0 255.255.255.0
R1(dhcp-config)# default-router 192.168.10.254
R1(config)# ip dhcp pool VOICE
R1(dhcp-config)# network 192.168.110.0 255.255.255.0
R1(dhcp-config)# default-router 192.168.110.254
R1(dhcp-config)# option 150 ip 192.168.110.254
R1(dhcp-config)# exit
option 150 : permet de spécifier l'adresse du serveur TFTP à partir duquel le
téléphone IP unifié Cisco télécharge le fichier de configuration d'image.
R1(config)# ip route 0.0.0.0 0.0.0.0 10.0.12.2 name VERS_R2Configuration de R2
### CONFIGURATION DES INTERFACES PHYSIQUE ###
R2(config)# interface FastEthernet 0/0
R2(config-if)# description VERS_R1
R2(config-if)# ip address 10.0.12.2 255.255.255.0
R2(config-if)# no shutdown
R2(config)# interface FastEthernet 0/1
R2(config-if)# description VERS_R3
R2(config-if)# ip address 10.0.23.2 255.255.255.0
R2(config-if)# no shutdown
### CONFIGURATION DU ROUTAGE STATIQUE ###
R2(config)# ip route 192.168.10.0 255.255.255.0 10.0.12.1 name VERS_R1
R2(config)# ip route 192.168.110.0 255.255.255.0 10.0.12.1 name VERS_R1
R2(config)# ip route 192.168.20.0 255.255.255.0 10.0.23.3 name VERS_R3
R2(config)# ip route 192.168.120.0 255.255.255.0 10.0.23.3 name VERS_R3Configuration de R3
### CONFIGURATION DES INTERFACES PHYSIQUE ###
R3(config)# interface FastEthernet 0/1
R3(config-if)# description VERS_WAN
R3(config-if)# ip address 10.0.23.3 255.255.255.0
R3(config-if)# no shutdown
R3(config)# interface FastEthernet 0/0
R3(config-if)# description VERS_LAN
R3(config-if)# no shutdown
### CONFIGURATION DES INTERFACES VIRTUELLE ###
R3(config)# interface FastEthernet 0/0.20
R3(config-subif)# description DATA
R3(config-subif)# ip address 192.168.20.254 255.255.255.0
R3(config-subif)# encapsulation dot1q 20
R3(config)# interface FastEthernet 0/0.120
R3(config-subif)# description VOICE
R3(config-subif)# ip address 192.168.120.254 255.255.255.0
R3(config-subif)# encapsulation dot1q 120
### CONFIGURATION DES SERVEURS DHCP ###
R3(config)# ip dhcp pool DATA
R3(dhcp-config)# network 192.168.20.0 255.255.255.0
R3(dhcp-config)# default-router 192.168.20.254
R3(config)# ip dhcp pool VOICE
R3(dhcp-config)# network 192.168.120.0 255.255.255.0
R3(dhcp-config)# default-router 192.168.120.254
R3(dhcp-config)# option 150 ip 192.168.120.254
R3(dhcp-config)# exit
option 150 : permet de spécifier l'adresse du serveur TFTP à partir duquel le
téléphone IP unifié Cisco télécharge le fichier de configuration d'image.
R3(config)# ip route 0.0.0.0 0.0.0.0 10.0.23.2 name VERS_R2La configuration de la partie VOIP
Configuration de R1
### CONFIGURATION DU CALL MANAGER ###
telephony-service
tftp-server flash:XXXXXXXXX (Inutile sous packet tracer)
max-ephones 3
max-dn 3
ip source-address 192.168.110.254 port 2000
### CONFIGURER LES ABONNÉES ###
ephone-dn 1
number 1001
name Noël NICOLAS
ephone-dn 2
number 1002
name Jérémy DUBOIS
### CONFIGURATION DES TÉLÉPHONES ###
ephone 1
mac-address XXXX.XXXX.XXXX
type 7960
button 1:1
ephone 2
mac-address XXXX.XXXX.XXXX
type 7960
button 1:2La commande button button-number (separator) dn-tag afin d’associer le numéro du bouton et les caractéristiques de la ligne à une extension. Dans ce cas, utilisez un séparateur : (deux-points) qui implique une sonnerie normale.
Configuration de R3
### CONFIGURATION DU CALL MANAGER ###
telephony-service
tftp-server flash:XXXXXXXXX (Inutile sous packet tracer)
max-ephones 3
max-dn 3
ip source-address 192.168.120.254 port 2000
### CONFIGURER LES ABONNÉES ###
ephone-dn 1
number 2001
name Teddy PERRAUD
ephone-dn 2
number 2002
name Stéphane PIC
### CONFIGURATION DES TÉLÉPHONES ###
ephone 1
mac-address XXXX.XXXX.XXXX
type 7960
button 1:1
ephone 2
mac-address XXXX.XXXX.XXXX
type 7960
button 1:2
